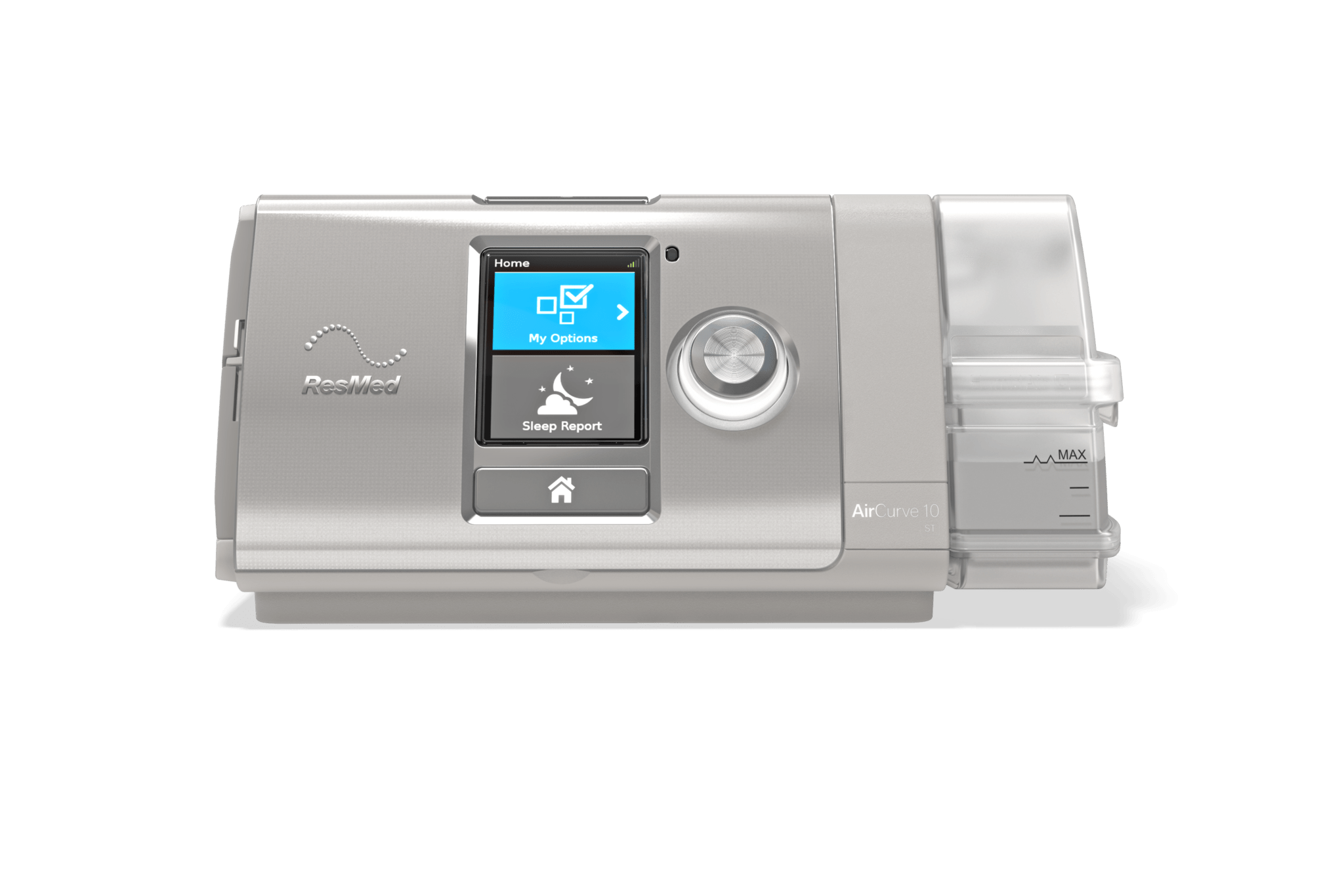

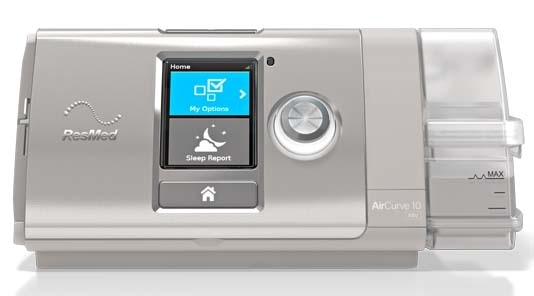

AirCurve 10 ST

AirCurve 10 ST

Showing a constant dedication to patient comfort, innovation in technology and use of only top quality components, ResMed brings on the market yet another user friendly Bi-Level machine. The AirCurve 10ST is intended to be used by patients with OSA-Obstructive Sleep Apnea, and the device is indicated for both home treatment and hospital use.

AirCurve 10 ST is a BiLevel device offering perfect patient –ventilator synchrony thanks to its incorporated backup rate. The device represents the best solution for patients who need extremely reliable, non-invasive type of ventilation either at home or in hospital care. AirCurve 10ST is equipped with all the latest innovative technology features to ensure patients are well ventilated all throughout the treatment phase, and they get maximum comfort and support with each breath.

AirCurve 10 ST Innovative Features

• Ti Control: TiControl is a special feature that allows the healthcare expert to set minimum and maximum time limits for the inspiration phase. In the case of patients with more complex respiratory disorders, early/late cycling can easily occur during the pressure support ventilation treatment. Ti Control helps prevent early and/or late cycling so that patients can enjoy maximum breathing comfort throughout the required therapy.
• Climate Control Technology: Throughout the therapy, the device will deliver comfortable humidity and temperature levels right at the mask. Climate Control comprises the inbuilt HumidAir humidifier system and the ClimateLineAir heated tube system. Climate Control is an intelligent feature that can adapt to the temperature and humidity conditions available in the environment where the device is used. Thus, the system will deliver optimal temperature and humidity for the best breathing comfort throughout the treatment.

The ClimateLine heated tube incorporates a special, sensitive heating circuit which is directly controlled by the Climate Control algorithm. The role of the sensor is to constantly measure the temperature of the air coming out of the tube, so that the algorithm can control the temperature and deliver maximum comfortable air that is not too cold or too hot.

Considering the classic humidifiers it should be noted these will cool down the air in the tube instantly as the environmental temperature drops. As a result, condensation can easily form into the tubing system which is quite uncomfortable. As a contrast, ClimateLine tubing maintains the temperature delivered constantly, regardless of the temperature changes in the environment.

• Each AirCurve 10 ST device comes with integrated wireless technology- there will be no need for additional SD Card or any module integration. Patients can easily access the online management system AirView whenever they want to check the nightly therapy data.

AirCurve 10ST –Within packaging:

• The main AirCurve 10 ST device
• Air Tubing system
• Water Tub
• Power Supply Unit
• Stylish Travel Bag
• SD Card ready (the card is already inserted)

Range of accessories compatible with AirCurve 10 ST:

• Heated/Non-Heated Air Tubing systems- ClimteLineAir, Standard tubing or SlimLine ultra sleek and stylish system
• Hypoallergenic Filter or Standard Filter
• Oximeter Adapter
• USB Adapter

AirCurve 10 ST user friendly Control Panel

AirCurve 10 ST has an extremely intuitive user-friendly control panel for even easier handling. There are three main buttons available: Start/Stop button, a Dial and Home button which is used to return to the home screen.

The easy to read and understand screen icons include the following:

• Ramp Time- allows patients to fall asleep on a gentler pressure. Ramp Time can be adjusted from 5 and up to 45 minutes. When Ramp Time is up, the device will automatically start delivering therapy at prescribed levels.
• Humidity- easily setting the humidity that patients feel comfortable with
• Humidifier Warming
• Humidifier Cooling
• Wireless signal strength- when the wireless signal is optimal the light is green
• Wireless transfer not enabled- when the signal is weak the light is grey
• No wireless connection
• Airplane Mode

AirCurve 10 ST Cautions:

• Make sure not to overfill the water tub as water can easily enter the air tubing and device and cause damages
• Use distilled water to fill up the tub
• Never use hot water to fill up the tub
• Always read carefully the mask user guide in order to set it up correctly and ensure that your device is working efficiently and in synchrony with the mask and tubing system

AirCurve 10 ST My Options

The device allows patients to truly personalize therapy to their needs and requirements. Accessing My Options is quick and easy:

• Making small adjustments is possible with a tap on the screen or a turn of the dial
• Set Ramp Time, Humidity Level or set the device to airplane mode
• Run Mask Fit- this feature allows setting the mask in a perfect position, so that there are no mask leaks or discomfort present.
• Enable Leak Alert- AirCurve 10 ST will beep if the mask leaks too much air. This way you can make easy and quick adjustments for a perfect seal and ensure you get efficient therapy all throughout the session
• SmartStart option- when the SmartStart option is enabled, therapy will start instantly as you breathe into the mask. The device will stop delivering therapy after you take off the mask.
• Warmup Function- you can easily and quickly pre-heat the water before you even start your therapy session. This way, you can ensure the air is never too cold/dry when you start your therapy session.

AirCurve 10ST Technical Specifications

• Power supply: 90W
• Typical power consumption: 53W (57VA)
• Peak power: 104W (108VA)
• Operating temperature range: +41°F to +95°F (+5°C to +35°C)
• Operating humidity range: 10 to 95% relative humidity (non-condensing)
• Operating altitude: Sea level to 8,500' (2,591 m) / air pressure range 1013 hPa to 738 hPa
• Storage & transport temperature: -4°F to +140°F (-20°C to +60°C)
• Storage & transport humidity: 5 to 95% relative humidity, non-condensing
• Pressure sensor: Internally located at device outlet, analog gauge pressure type, -5 to +45 cm H2O
• Flow sensor: Internally located at device inlet, digital mass flow type, -70 to +180 L/min
• Sound Levels:
• -SlimLine: 26.6 dBA with uncertainty of 2 dBA
• -Standard: 26.6 dBA with uncertainty of 2 dBA
• Power level:
• -SlimLine: 34.6 dBA with uncertainty of 2 dBA
• -Standard: 34.6 dBA with uncertainty of 2 dBA
• Device Dimensions (H x W x D): 4.57" x 10.04" x 5.91" (116 mm x 255 mm x 150 mm)
• Weight (device + standard water tub): 44 oz (1248 g)
• Weight (device + cleanable water tub): 44 oz (1248 g)
• Housing construction: Flame retardant engineering thermoplastic
• Water capacity: To maximum fill line: 380 mL
• Air filter material: Polyester Non Woven Fiber
• *ResMed confirms that device meets the Federal Aviation Administration (FAA) requirements for all phases of air travel.
• Wireless modules:
• Technology used: CDMA (USA and Canada only)
• 2G GSM (all regions except USA & Canada)
