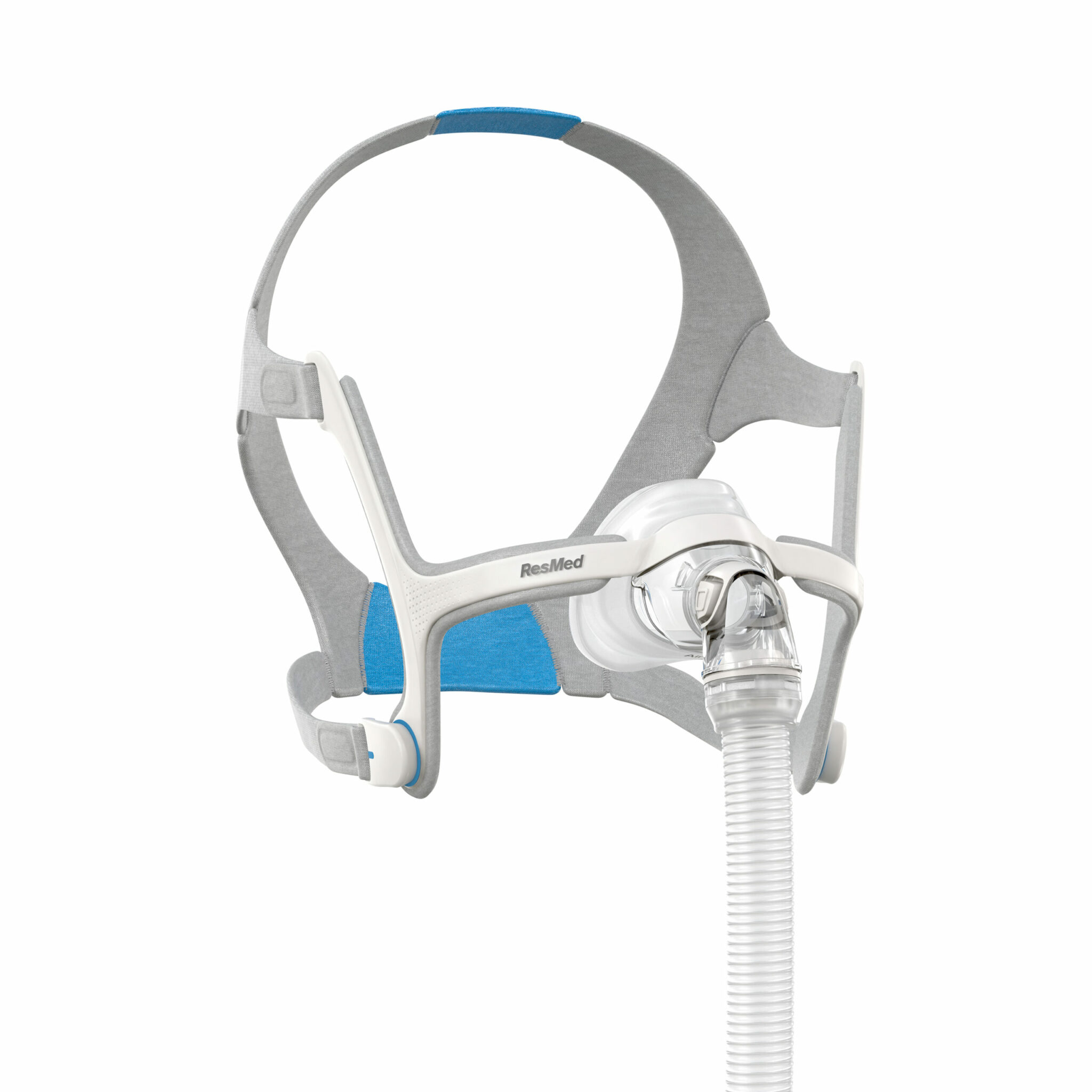

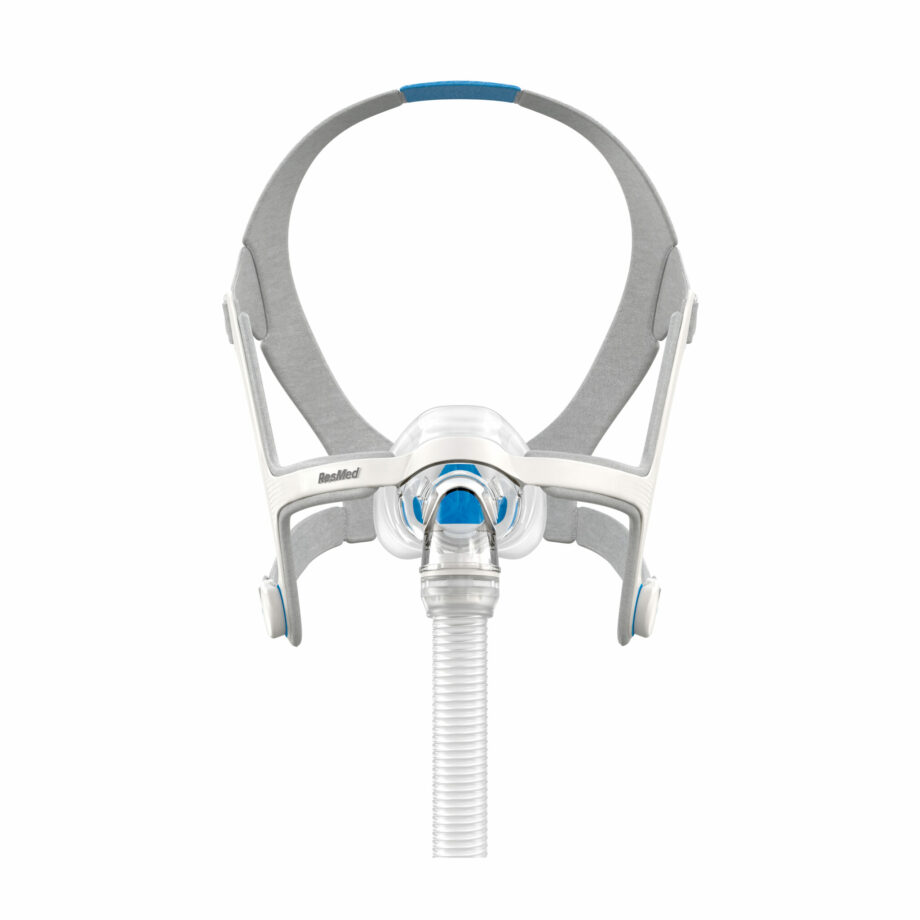

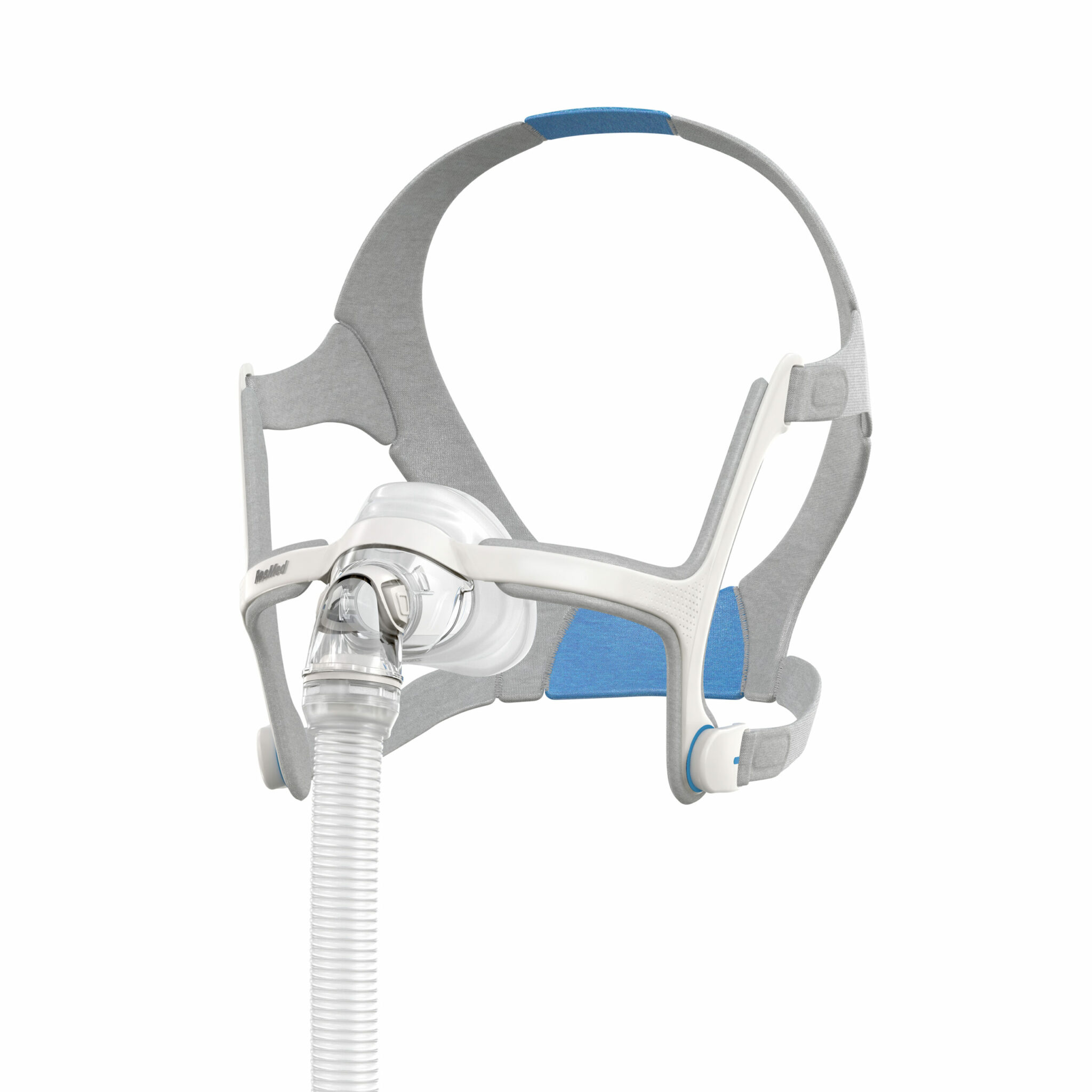

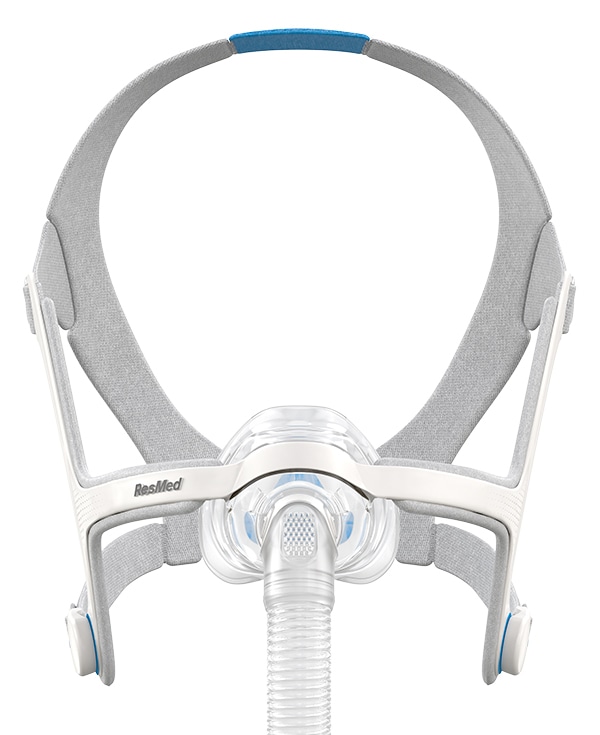

AirFit N20 Nasal CPAP Mask

The AirFit N20 is a compact nasal mask, designed to deliver maximum therapy compliance and comfort to the patient. The nasal mask fits a wide range of facial features, and helps offering the best visibility without obstructing the view. Studies show that the new AirFit N20 fits 99.4% of all patients, while the InfinitySeal silicone cushion adapts easily and provides the best stability during air therapy.

• Light & soft- the nasal mask is designed to be light and soft all throughout, from the frame structure to the headgear and cushion
• Best visibility- the mask provides a minimal contact fit, which means patients get comfortable therapy without any pressure points
• The nasal mask is designed to allow entertainment during therapy. Patients can watch TV or read their favorite magazine without any problems

InfinitySeal silicone cushion

InfinitySeal is an extremely efficient and reliable cushion seal which helps preventing blow-outs and provides the perfect seal regardless of the prescribed pressure used. The silicone cushion guarantees excellent performance even under the most challenging therapy circumstances. The cushion stays perfectly fit during patient movement, so the mask represents an effective solution for patients who move a lot during their sleep.

• Robust seal regardless of movement
• Highly adaptive folds help accommodating the widest range of nasal shapes/sizes. The folds will basically curve to adapt to the individual profile of the wearer.
• Extremely soft nasal bridge- helps avoiding red marks and pressure points
• Maximum comfort and stability ensured by the flexible under cushion, soft top lip envelope, and supportive side padding for the cheek area

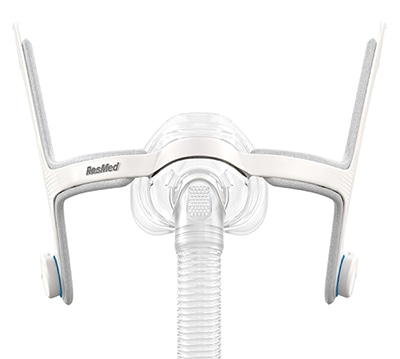

AirFit N20 Soft Frame Structure

The face side of the frame is padded to provide maximum comfort to the patient while wearing the mask. The padded frame ensures there will be no sore, pressure points or marks/wrinkles developing on the face from mask wear.

Quick Fit System

The mask is equipped with magnetic clips that help guiding the headgear to the frame. Taking the mask on and off is extremely easy and quick thanks to the fitting system. The magnetic clips help fitting the mask always in the correct position.

No Tube Drag or Leakage

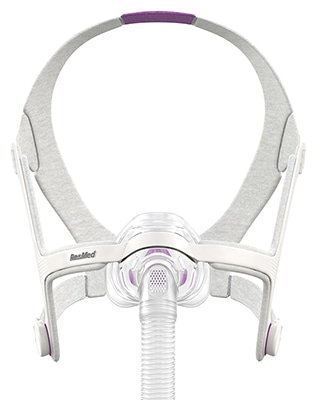

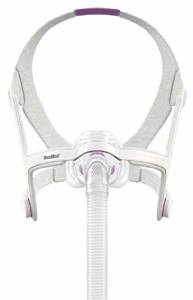

The elbow part of the mask connects to the machine tube through a short and flexible tube. This ensures patients can move around easily while the mask stays comfortably fit. Thanks to this interconnected technology, there is no tube drag or leakage present. AirFit N20 for women - ResMed offers the AirFit N20 for Her, which has been specifically designed to fit the smaller facial contours of women. The mask comprises minimal parts, in order to make cleaning and usage extremely easy. The main parts of the mask include the Elbow & short tube, the main frame structure, the InfinitySeal cushion and the comfort padded headgear.

Technical Specifications:

• Dead space information: Physical dead space is the empty volume of the mask to the end of the swivel. Using the large cushions it is 90.0 mL.
• Therapy pressure: 4 to 30 cm H2O
• Resistance Drop in pressure measured (nominal)
• at 50 L/min: 0.4 cm H2O
• at 100 L/min: 1.3 cm H2O
• Environmental conditions
• Operating temperature: 5°C to 40°C
• Operating humidity: 15% to 95% non-condensing
• Storage and transport temperature: -20°C to +60°C
• Storage and transport humidity: up to 95% non-condensing
• Sound DECLARED DUAL-NUMBER NOISE EMISSION VALUES in accordance with ISO 4871. The A-weighted sound power level of the mask is 26 dBA, with uncertainty of 3 dBA. The A-weighted sound pressure level of the mask at a distance of 1 m is 18 dBA, with uncertainty of 3 dBA.
• Gross dimensions: 339 mm (H) x 291 mm (W) x 162 mm (D)
• Mask fully assembled with the short tube assembly and swivel, excluding the headgear.
