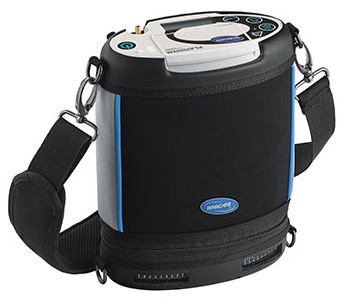

The Invacare Platinum Mobile Portable Oxygen Concentrator was built with your lifestyle in mind. The bag easily repels moisture and is water resistant for up to 10 minutes of rain. There are reinforced bumpers and cushions to help protect the unit and lessen everyday bumps. Including a foam encapsulated compressor.
The Platinum Mobile comes with a 3 way carry case so it can be carried as a messenger bag, backpack or purse style carrier. Load or exchange batteries from the top without taking off the bag.
WHATS IN THE PLATINUM MOBILE BOX:
- Concentrator
- Nasal Cannula
- Two Shoulder Straps
- AC Power Adapter
- AC power Cord
- DC Power Cable
PLATINUM MOBILE SPECIFICATIONS:
- Operating Temperature: 41 F to 104 F
- Electrical Requirements: AC Power Supply: 110 - 240 VAC, 50 - 60 Hz; DC Power Supply: 11 - 16 VDC
- Storage and Transport Temperatures: -13 F to 140 F
- Operational Altitude Up to 10,000 FT
- Oxygen Purity: 87% to 95.6%, at all flow settings
- Conserver Breath Rate Capacity: 15 - 40 BPM without reduction of bolus minute volume
- Battery Specifications: Rechargeable lithium-ion, 14.1 V, 5800 mAh, 83.5 Wh, 500 full charge/discharge cycle life
- Battery Duration:
- Battery Charge Time: One Battery: 2 hr 20 min, Two Battery: 4 hr 40 min
- Sound Pressure Level: < 40 dBA at setting 2
- Dimensions: 9.4 inch high x 7.4 in wide x 3.7 in deep
- Weight: 4.9 lbs with single battery, add 1 lbs for a second battery
Condition | One Battery | Two Batteries |
---|---|---|
Pulse Setting 1 | 5 hr 5 min | 10 hr 10 min |
Pulse Setting 2 | 3 hr 30 min | 7 hr 0 min |
Pulse Setting 3 | 2 hr 20 min | 4 hr 40 min |
Pulse Setting 4 | 1 hr 45 min | 3 hr 30 min |
Pulse Setting 5 | 1 hr 10 min | 2 hr 20 min |
